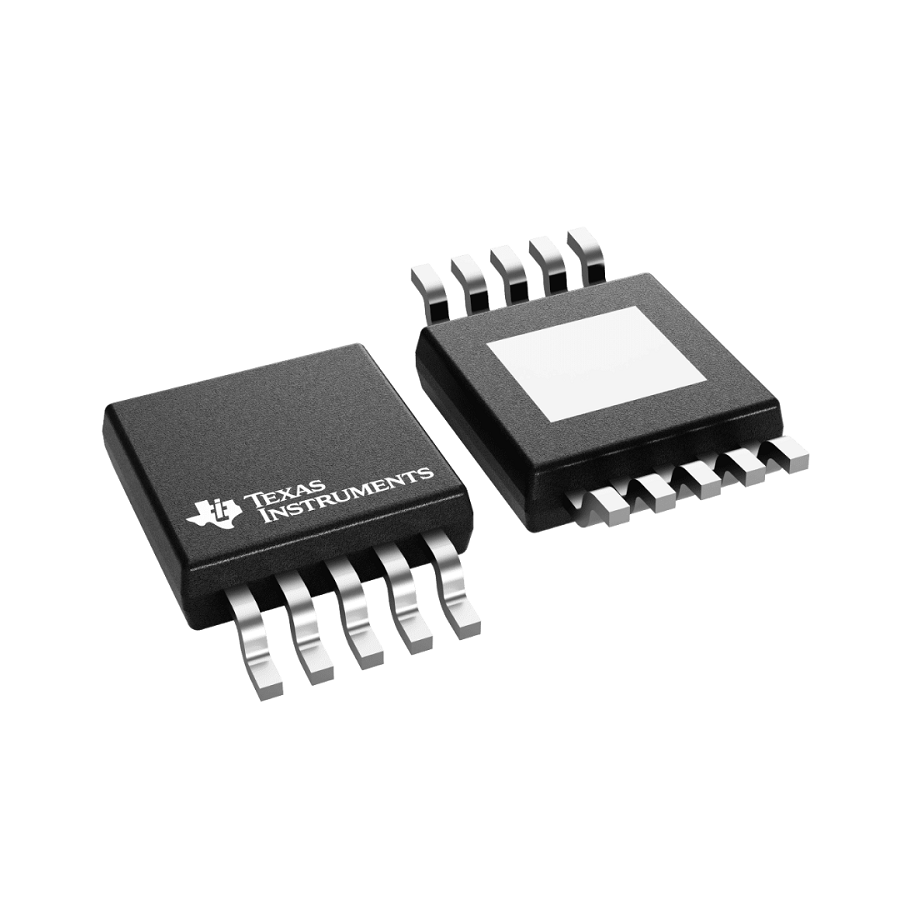

DRV8830DGQ
Manufacturer:
Texas Instruments
Mfr.Part #:
DRV8830DGQ
Datasheet:
Description:
Motor Drivers MSOP-10 EP SMD/SMT I²C Load voltage:2.75 V to 6.8 V Half Bridge (2)
| Parameter | Value |
|---|---|
| Length | 3 mm |
| Width | 3 mm |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 10 |
| Height | 1.1 mm |
| Packaging | Tube |
| Thickness | 1.02 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Interface | I²C |
| Output Current | 1 A |
| Output Voltage | 1.285 V |
| Operating Supply Voltage | 2.75 V to 6.8 V |
| Lifecycle Status | Production (Last Updated: 1 day ago) |
| Max Supply Voltage | 6.8 V |
| Min Supply Voltage | 2.75 V |
| Max Collector Current | 1 A |
| Operating Supply Current | 1.4 mA |
| Output Configuration | Half Bridge (2) |
| Number of Outputs | 1 |
| Motor Type | Brushed |
| Nominal Supply Current | 1.4 mA |
| Collector Emitter Voltage (VCEO) | 6.8 V |
| Chemistry/Technology | Power MOSFET |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 1 day ago) |
| Applications | Battery Powered |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Load Voltage | 2.75 V to 6.8 V |
| Motor Type - Stepper | Bipolar |
| Motor Type - AC, DC | Brushed DC |
Stock: 2945
Distributors
pcbx
pcbxUnit Price$1.50810
Ext.Price$1.50810
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.50810 | $1.50810 |
| 10 | $1.12680 | $11.26800 |
| 25 | $0.94213 | $23.55325 |
| 50 | $0.91050 | $45.52500 |
| 100 | $0.87993 | $87.99300 |
| 300 | $0.85039 | $255.11700 |
| 500 | $0.82184 | $410.92000 |
| 1000 | $0.79423 | $794.23000 |
